Product Details |
|||
| Models | |||

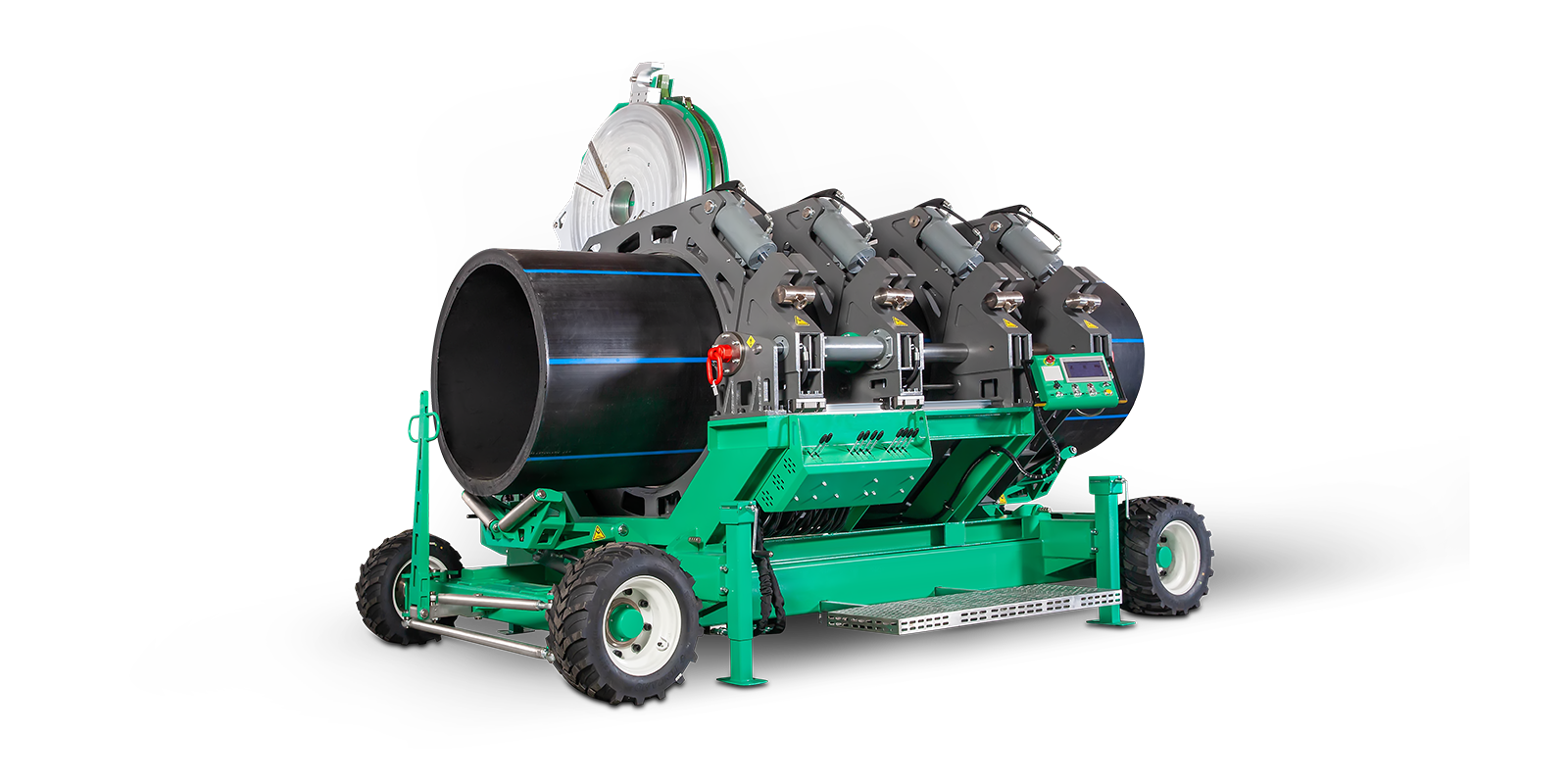

| 902306120, Mazinger 1200i
902306048,Mazinger 48i
|
Automatic, High Force, 220/380V, 50/60Hz, 3 Phase | ||
| 902307120, Mazinger 630
902306048,Mazinger 24
|
Manual, High Force, 220/380V, 50/60Hz, 3 Phase | ||
| Capacity | |||
| Welding Range |
630mm-1200mm,24"IPS-48"IPS
|
||
|
Inserts Type |
Single insert
|
||
| Power | |||
| Heater | 22KW | ||
| Trimmer | Hydraulic | ||
| Electric Motor | 16KW | ||
| Hydraulic | |||
| System Pressure | 200 Bar (2900 PSI) Max. | ||
| Hydraulic Reservoir Capacity | 106 Liters (28 Gallons) | ||
| Weight | |||
| Machine | 7350 Kg (16170 lbs.), excluding inserts | ||
| Shipping | 7350 Kg (16170 lbs.), excluding inserts | ||
| Chassis | |||
| Frame | Welded steel tube construction | ||
| Front Axle | Articulating | ||
| Tires | High-flotation inflatable tires | ||
| Transportation | Pulled via towing ring | ||
| Machine Carriage | Removable | ||
| Dimension | |||
| Machine | 5250mm x 2310mm x 2600mm 206" x 91" x 102" |
||
| Machine Carriage | 3150mm x 226mm x 2180mm 124" x 89" x 86" |
||
| Shipping | 5250mm x 2310mm x 2600mm 206" x 91" x 102" |
||
| Optional Configuration | |||
| Inserts | √ | ||
| Stub End Device | √ | ||
| Mobile Support Roller | √ | ||
| Data Logger | Compatible with manual version | ||
• The dua axis structural frame ensures strength and
even distribution of welding force
• On-board heating plate with protection frame and
insulated shield
• On-board high capacity trimmer driven by hydraulic power
• Removable machine chassis for in-ditch use
• Removable 4thjaw for enhanced convenience in
fusing prefabricated fittings onto the pipe
• Strong jaws and inserts keep pipe from slipping during fusion
• Hydraulic pipe lift on both sides aimed in loadingand unloading pipe
• Rugged outriggers for stability
• Hydraulic clamping
• Data logger (PEWELDBANK)is compatible (manual version)
• Removable control panel with data-logging,memory up to 30000 welding reports; USB port for welding data download /firmware upgrade
• Easy welding procedure achieved by operator just
pressing the button
