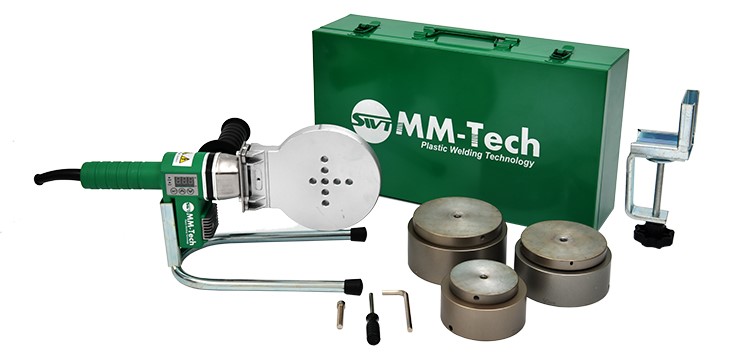

Digital Socket Fusion Machine ZRJQ-110 (75MM-110MM)
Digital Precision & Safety Features
The ZRJQ‑110 introduces digital temperature control for enhanced fusion accuracy: operators can pre-set target temperatures, with real‑time display and automatic ambient compensation. Over‑temperature triggers an alarm, safeguarding both the die and operator. This level of accuracy positions the unit prominently among The Best Ppr Pipe Welding Machine tools
Robust Construction & Ergonomic Design
Built around a sturdy aluminum heating plate and reinforced nylon handle, the machine delivers long-lived fusion cycles with manageable ergonomics. Teflon-coated dies and optional surface upgrades resist sticking and simplify cleanup. Despite its compact profile, the tool aligns with durability expectations from hdpe welding machine manufacturer offerings.
Versatility & Standards Compliance
Operating at either 110 V or 220 V with 1,200 W of power, the ZRJQ‑110 accommodates pipe sizes from 75 mm to 110 mm and supports fusion of PPR, PE, and PB materials. Its design meets DVS 2208‑1 specifications—a key credential for hdpe pipe fusion machine and Butt Fusion Welding Machine Spares sectors pursuing dependable tool choices.
Our Advantages:
1. Unique digital display screen, according to the different material, it can adjust the corresponding temperature—ideal for The Best Ppr Pipe Welding Machine control.
2. Two kinds of removable supporting stand, welding at multi-directions—fit for pe welding machine manufacturers seeking flexible operation.
3. A set of dedicated spanner, convenient to use and carry, often included by china hdpe welding machine supplier.
4. Electronic intelligent control system, it can realize automatic temperature compensation—essential in hdpe pipe fusion machine use cases.
5. Heating interval signal lights, supporting safety monitoring for Butt Fusion Welding Machine tasks.
6. Thermal insulation handle made of reinforced nylon—standard among hdpe welding machine manufacturer handheld devices.
7. Sockets with high quality adhesive coating, for longer lifetime and great fusion effect—reduce Butt Fusion Welding Machine Spares replacements.
Welding Sockets & Spigots:
|
| Specifications of pipes(φ) |
Internal diameter of concave head-Sockets(φ) |
Internal diameter of convex head-Sockets(φ) |
Heat-fusing depth |
| A |
B |
A |
B |
A |
B |
| 75 |
74.60 |
74.00±0.20 |
74.20 |
73.60±0.20 |
25.8 |
27.8 |
| 90 |
89.50 |
88.80±0.20 |
89.10 |
88.40±0.20 |
28.7 |
30.7 |
| 110 |
109.35 |
108.45±0.20 |
109.00 |
108.10±0.20 |
32.3 |
36.3 |
MACHINE ACCESSORIES KIT
TECHNICAL DATA
|
Rated Voltage:
|
110V or 220V or optional
|
|
Rated Frequency:
|
50/60Hz
|
|
Rated Power:
|
1200W
|
|
Working Temperature:
|
220℃-290℃
|
|
Temperature Tolerance:
|
≤2℃
|
|
Warning Temperature:
|
295℃
|
|
Applicable material:
|
PP-R,HDPE,PB
|
|
Welding Diameter:
|
75mm-110mm
|
|
Packing:
|
1pc/Poly bag, 2pcs/ctn
|
|
OEM:
|
Available
|
|
Features:
|
- 1mm thickness metal case
- VDE standard rubber cable
- Nylon plastic handle
- Daikin Teflon surface painting on sockets
- Accurate temperature control and automatic temperature compensation
|
|
Include:
|
- 1 socket fusion machine
- 1 big metal case
- 1 table stand
- 1 table clamp
-1 reinforced handle
- 2 spanners
- 2 bolts
- 1 set of heavy-duty welding socket 75mm, 90mm and 110mm
|

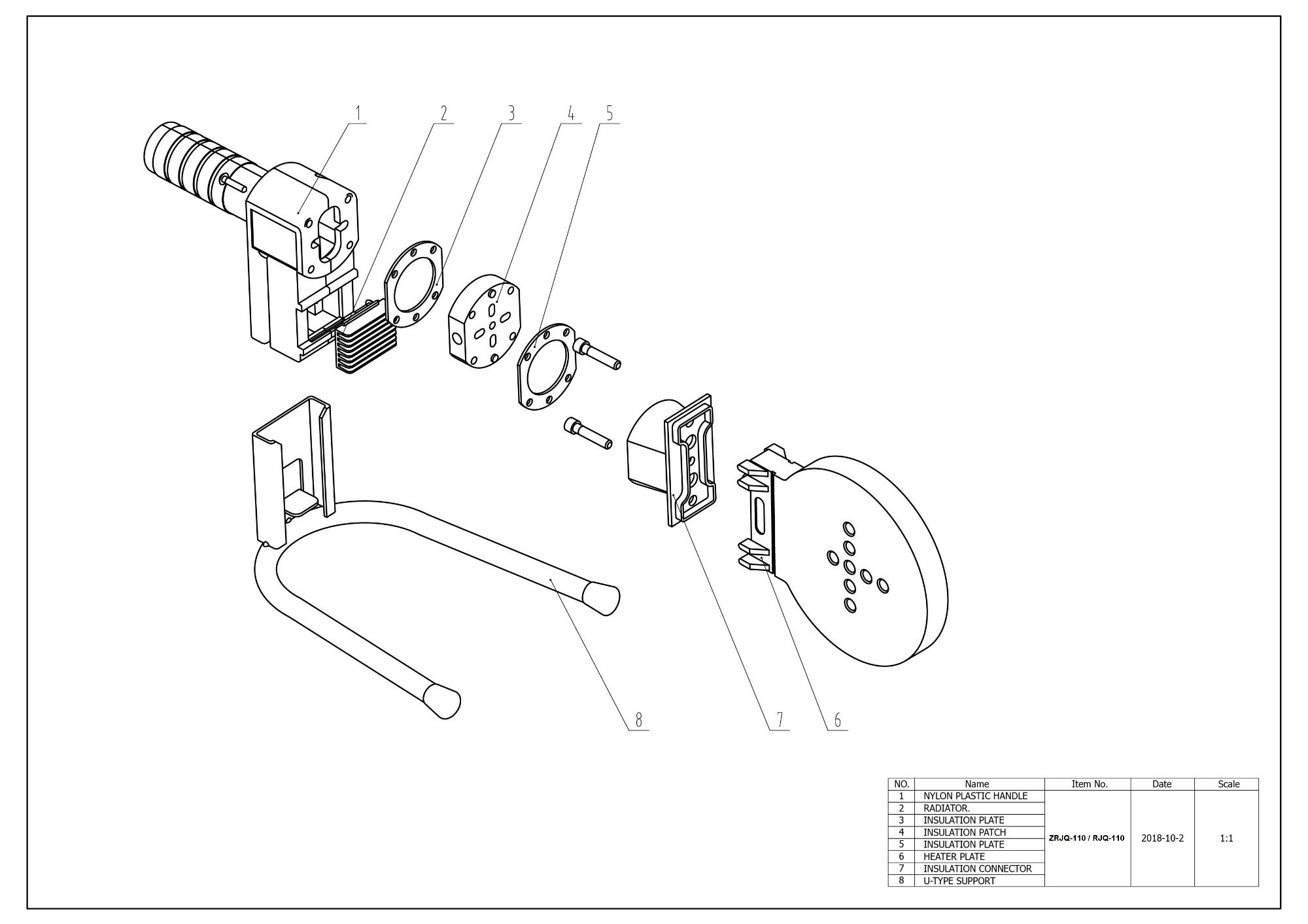

MACHINE STRUCTURE DRAWS
SOCKET FUSION INSTRUCTION
1. Fusion Preparation
Choose the suitable machine and sockets.
Prepare the cutter,fusion material.
2. Cutting the pipe
Cutting the necessary pipe length with the plastic pipe cutter.
3. Clearing the pipe
Clearing the fusion surface of pipe with alcohol.
4. Measure fusion depth
Measure the fusion depth according the fusion standard table and mark.
5. Heating
Put the pipe and fitting into the sockets horizontal, Heating time refer standard.
6. Connecting and cooling
Connect the heated pipe and fitting exactly and adjustment finish in 5s.
PRODUCT FEATURES
Feature:
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABs + Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel spanner and screw.
Aluminum material with Daikin teflon,
Size support Dvs and ASTM standard,
Heating sockets, repair sockets and saddle
sockets are provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
CONTACT OUR EXPERTS TODAY FOR MORE INFORMATION
About Us
MM‑Tech, founded in 2011, is a Chinese manufacturer specializing in thermoplastic welding equipment. Serving over 3,000 clients across more than 100 countries, its product range spans butt fusion, socket fusion, electrofusion, hot-air, extrusion welders, and sheet welding/bending machines. MM‑Tech operates a production facility exceeding 5,000 m² and employs approximately 100 engineers and technicians. The company provides integrated services covering design, manufacturing, delivery, installation, and commissioning. Its equipment supports sectors including plumbing, infrastructure, water treatment, and industrial fabrication, and holds CE and ISO certifications.
Contact for detailed specs and optimized pricing for your welding operations.
FAQ
What pipe materials and sizes does the ZRJQ‑110 support?
It handles fusion of PPR, PE, and PB pipes in the 75–110 mm diameter range.
Can welding parameters be saved or reused?
While it doesn’t store multiple profiles, the digital display allows precise temperature setting and logs the actual fusion temperature for consistency.
What power options are available?
Variants support both 110 V and 220 V operation at 1,200 W power.
How durable are the heating die surfaces?
The Teflon-coated die enhances wear resistance and ease of cleaning, supporting extended service life.
Is it safe for frequent use in tight spaces?
Yes—its lightweight form factor, LED display, and ergonomic structure make confined-area use both practical and controllable.
