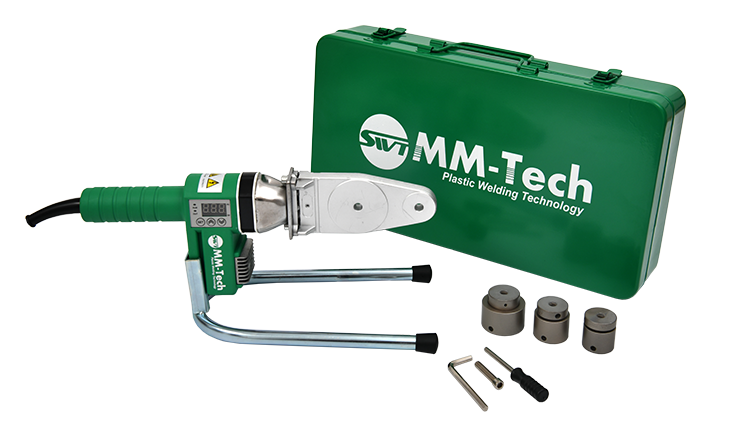

Digital Socket Fusion Machine ZRJQ-40 (20MM-40MM)
Our Advantages:
1、Unique digital display screen allows precise temperature adjustment based on different pipe materials. This feature enhances control during socket welding and complements larger butt fusion machine operations.
2、Two types of removable supporting stands enable multi-directional welding. Includes a dedicated wrench set, making this compact fusion welder easy to transport and operate in various environments.
3、Equipped with an electronic intelligent control system, the device supports semi-automatic operation for increased efficiency—ideal for teams using both socket and electrofusion welding machine systems on-site.
4、Built-in temperature compensation function ensures stable heat output. Heating interval signal lights assist the operator in maintaining correct fusion timing, which is critical for butt fusion welding machine consistency.
5、Reinforced nylon thermal insulation handle ensures safety during high-temperature operation, providing durability and comfort for technicians handling fusion welder equipment in repetitive cycles.
6、Sockets are coated with high-quality adhesive for longer service life, reducing the need for frequent replacements and ensuring consistent weld results across PE, PP-R, and PB materials commonly used in butt welding machine applications.
7、Provides excellent fusion quality and joint strength, matching the performance expectations of larger-scale butt fusion machines while maintaining the flexibility of a portable socket fusion solution.
How to set the temperature:
Connect to the power ( power must be equipped the leakage protector), according to the concerned plastic pipes, set the temperature with pushing the button SET for 2 seconds, and then push the button ∧ continuously, the temperature will increase gradually, and then push the button ∨, temperature will reduce to the corresponding range, push the SET button to display the temperature, red light means heating stage, and green light means temperature is being kept, can start to work when it reach the seted temperature.
MACHINE ACCESSORIES KIT
TECHNICAL DATA
|
Rated Voltage:
|
110V or 220V or optional
|
|
Rated Frequency:
|
50/60Hz
|
|
Rated Power:
|
600W
|
|
Working Temperature:
|
220℃ - 290℃
|
|
Temperature Tolerance:
|
≤2℃
|
|
Warning Temperature:
|
295℃
|
|
Applicable material:
|
PP-R,HDPE,PB
|
|
Welding Diameter:
|
20mm,25mm,32mm and 40mm
|
|
Packing:
|
1pc/Poly bag, 4pcs/ctn
|
|
OEM:
|
Available
|
|
Features:
|
- 0.8mm thickness metal case
- VDE standard rubber cable
- Nylon plastic handle
- Daikin Teflon surface painting on sockets
- Accurate temperature control and automatic temperature compensation
|
|
Include:
|
- 1 socket fusion machine
- 1 metal case
- 1 table stand
- 2 spanners
- 2 bolts
- 1 set of heavy duty welding socket 20mm,25mm, 32mm and 40mm
|
MACHINE STRUCTURE DRAWS
SOCKET FUSION INSTRUCTION
1. Fusion Preparation
Choose the suitable machine and sockets.
Prepare the cutter,fusion material.
2. Cutting the pipe
Cutting the necessary pipe length with the plastic pipe cutter.
3. Clearing the pipe
Clearing the fusion surface of pipe with alcohol.
4. Measure fusion depth
Measure the fusion depth according the fusion standard table and mark.
5. Heating
Put the pipe and fitting into the sockets horizontal, Heating time refer standard.
6. Connecting and cooling
Connect the heated pipe and fitting exactly and adjustment finish in 5s.
PRODUCT FEATURES
Feature:
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABs + Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel spanner and screw.
Aluminum material with Daikin teflon,
Size support Dvs and ASTM standard,
Heating sockets, repair sockets and saddle
sockets are provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
CONTACT OUR EXPERTS TODAY FOR MORE INFORMATION
The ZRJQ-40/116 is developed by MM-Tech as a compact yet highly capable solution for precision socket fusion welding on plastic pipes between Ø20mm and Ø63mm. Designed for PP-R, PB, and PE pipes, it serves as an essential tool for plumbing contractors, field installers, laboratory operators, and building maintenance personnel. With its ease of use and compact frame, it provides an efficient and reliable alternative where large butt fusion machine systems are impractical. Whether you're handling domestic water lines or industrial secondary pipelines, the ZRJQ-40/116 delivers consistent fusion quality through controlled heat application.
Digital Heating System With Smart Thermal Control
At the heart of the ZRJQ-40/116 is a digital temperature regulation system that allows precise adjustment between 0°C and 300°C. The integrated thermostat and LED temperature display offer real-time feedback, ensuring stable socket heating without thermal overshoot. This reduces joint failure caused by overheating or underheating—common issues in traditional fusion equipment. The non-stick aluminum heating plate ensures clean detachments between cycles. Though primarily used for socket fusion, the device can complement electrofusion welding machine workflows in hybrid job sites where both joining methods are required. Its electronic control accuracy meets the growing demand for dependable low-diameter welding.
Compact Application With Wide Industrial Versatility
While optimized for localized or interior pipework, the ZRJQ-40/116’s build quality and thermal stability support broader use in multiple industries. From HVAC retrofits and residential plumbing to lab fluid handling systems and small-diameter chemical transport lines, this tabletop butt welding machine excels in any context where controlled fusion is key. It is ideal for secondary pipeline connections and auxiliary fittings that require the same level of joint reliability as mainline systems. Its compatibility with PP-R and PE materials also allows it to work in parallel with full-size butt fusion welding machine systems on more complex installations.
