- All heater faces have a thin layer of non-stick teflon coating.
- If the teflon coating becomes worn or scratched, the welding sockets should be replaced.
- The heating sockets should be cleaned before using.
- Do not clean the heating sockets with a synthetic fabric.
Fusing Standards: |
||||
| Diameter(Mm) | Welding Epth(Mm) | Heating Time(S) | Processing Time(S) | Cooling Time(Mm) |
| 20 | 14 | 5 | 4 | 3 |
| 25 | 16 | 7 | 4 | 3 |
| 32 | 20 | 8 | 4 | 4 |
| 40 | 21 | 12 | 6 | 4 |
|
Rated Voltage:
|
110V or 220V or optional
|
|
Rated Frequency:
|
50/60Hz
|
|
Rated Power:
|
600W
|
|
Working Temperature:
|
220℃ - 290℃
|
|
Temperature Tolerance:
|
≤2℃
|
|
Warning Temperature:
|
295℃
|
|
Applicable material:
|
PP-R,HDPE,PB
|
|
Welding Diameter:
|
20mm,25mm,32mm and 40mm
|
|
Packing:
|
1pc/Poly bag, 5pcs/ctn
|
|
OEM:
|
Available
|
|
Features:
|
- 0.8mm thickness metal case
- VDE standard rubber cable - Nylon plastic handle - Daikin Teflon surface painting on sockets - Accurate temperature control and automatic temperature compensation |
|

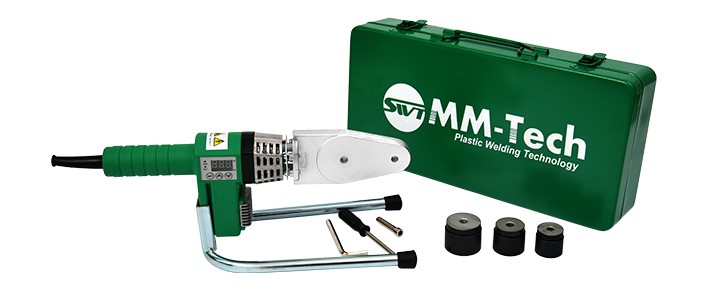

Include:
|
- 1 pipe fusion machine
- 1 metal case - 1 table stand - 2 spanners - 2 bolts - 1 set black welding socket 20mm,25mm, 32mm and 40mm |
Feature:
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABs + Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel spanner and screw.
Aluminum material with Daikin teflon,
Size support Dvs and ASTM standard,
Heating sockets, repair sockets and saddle
sockets are provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
