1、Unique digital display screen,according to the different material,it can adjust the corresponding temperature.
2、Two kinds of removable supporting satand,welding at multi-directions.Aset of dedicated wrench,convenient to use and carry.
3、Electronic intelligent control system,it can realize autonmatic.
4、temperature compensation. Heating intrval signal lights.
5、Thermal insulation handle made of reinforced nylon.
6、Sockets with high quality adhesive coating,for longer lifetime.
7、and great fusion effect.
Connect to the power ( power must be equipped the leakage protector), according to the concerned plastic pipes, set the temperature with pushing the button SET for 2 seconds, and then push the button ∧ continuously, the temperature will increase gradually, and then push the button ∨, temperature will reduce to the corresponding range, push the SET button to display the temperature, red light means heating stage, and green light means temperature is being kept, can start to work when it reach the seted temperature.
|
Rated Voltage:
|
110V or 220V or optional
|
|
Rated Frequency:
|
50/60Hz
|
|
Rated Power:
|
600W
|
|
Working Temperature:
|
220℃ - 290℃
|
|
Temperature Tolerance:
|
≤2℃
|
|
Warning Temperature:
|
295℃
|
|
Applicable material:
|
PP-R,HDPE,PB
|
|
Welding Diameter:
|
20mm,25mm,32mm and 40mm
|
|
Packing:
|
1pc/Poly bag, 4pcs/ctn
|
|
OEM:
|
Available
|
|
Features:
|
- 0.8mm thickness metal case
- VDE standard rubber cable - Nylon plastic handle - Daikin Teflon surface painting on sockets - Accurate temperature control and automatic temperature compensation |
|

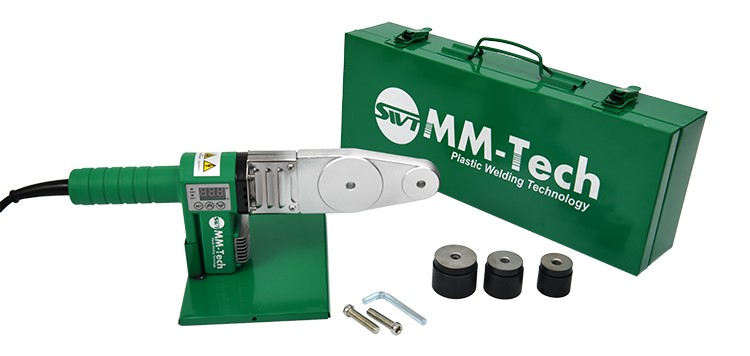

Include:
|
- 1 socket fusion machine
- 1 metal case - 1 table stand - 2 spanners - 2 bolts - 1 set of heavy duty welding socket 20mm,25mm, 32mm and 40mm |
Feature:
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABs + Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel spanner and screw.
Aluminum material with Daikin teflon,
Size support Dvs and ASTM standard,
Heating sockets, repair sockets and saddle
sockets are provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
