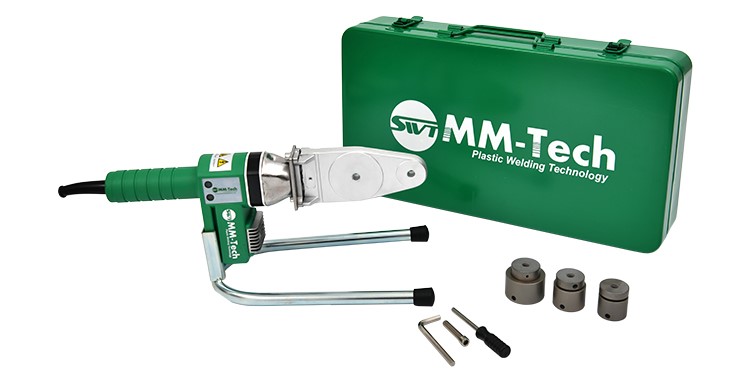

1、Equipped with two types of detachable support stands, this socket fusion machine enables multi-directional welding to meet diverse on-site positioning needs.
2、Includes a dedicated spanner set designed for convenient handling and transportation—ideal for field operators using electrofusion welding machine accessories.
3、Features an electronic constant temperature controller with an indicator light, ensuring stable heating throughout the fusion process.
4、The handle is made from reinforced nylon with thermal insulation, offering both durability and safety during prolonged use in butt fusion welding machine environments.
5、Fitted with high-quality coated sockets that enhance adhesion and extend service life, delivering a stronger and more reliable fusion effect—especially crucial in socket fusion machine operations involving PPR and PE materials.
Fusing Standards:
External Diameter of pipes(Mm)
Fusing Depth(Mm)
Heating Time(s)
Processing Time (s)
Cooling Time(Min)
A
B
20
14
14
5
4
3
25
15
16
7
4
3
32
16.5
18
8
4
4
40
18.0
20
12
6
4
MACHINE AccessoRlEs KIT
TECHNICAL DATA
Rated Voltage:
110V or 220V or optional
Rated Frequency:
50/60Hz
Rated Power:
600W
Working Temperature:
260℃
Temperature Tolerance:
≤2℃
Warning Temperature:
295℃
Applicable material:
PP-R
Welding Diameter:
20mm,25mm,32mm and 40mm
Packing:
1pc/Poly bag, 4pcs/ctn
OEM:
Available
Features:
- 0.8mm thickness metal case
- VDE standard rubber cable
- Nylon plastic handle
- Daikin Teflon surface painting on sockets
- Accurate temperature control and automatic temperature compensation
Include:
- 1 PPR welding machine
- 1 metal case
- 1 table stand
- 2 spanners - 2 bolts
- 1 set black welding socket 20mm,25mm, 32mm and 40mm

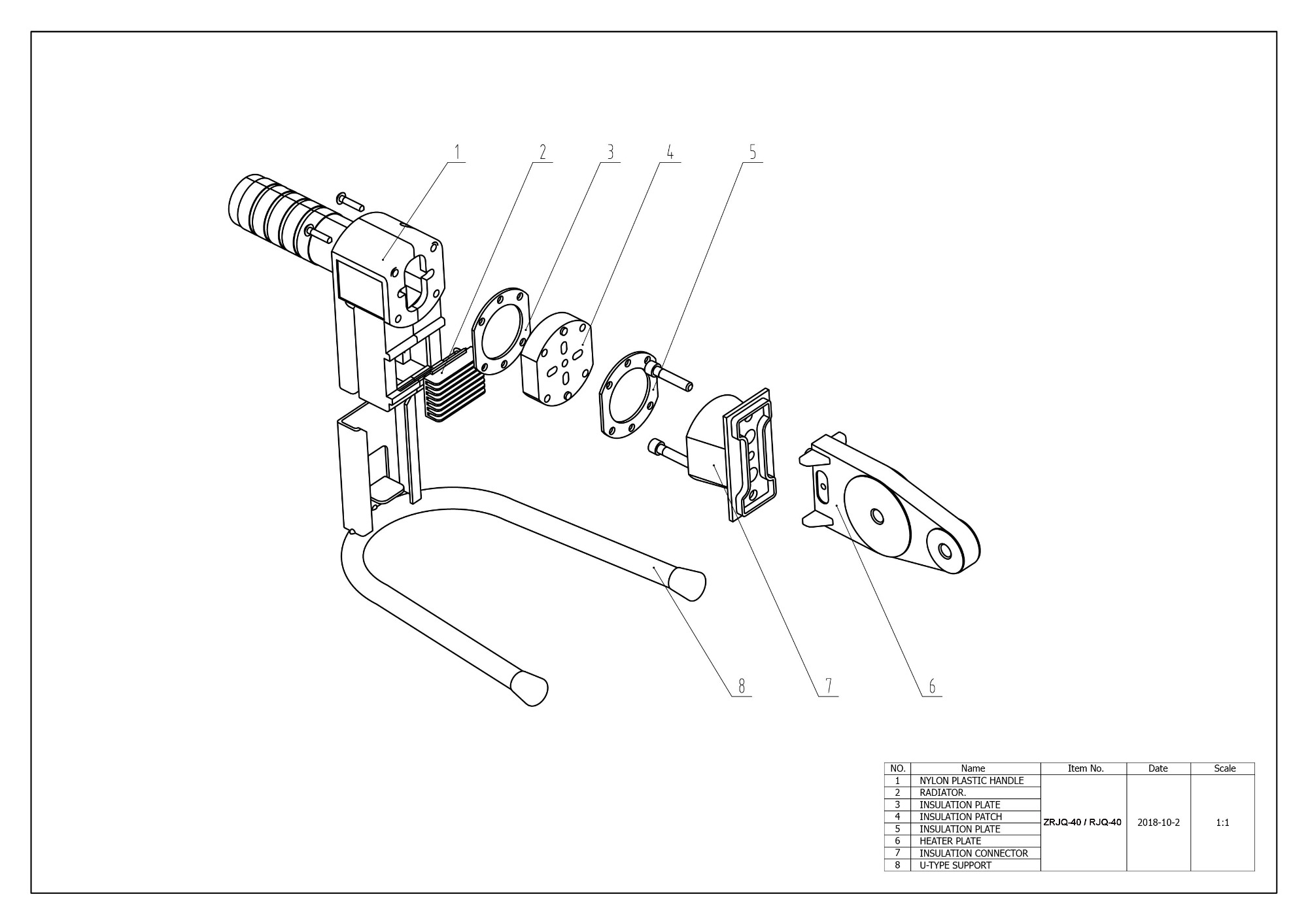

MACHINE STRUCTURE DRAWS
SOCKET FUSION INSTRUCTION
1. Fusion Preparation
Choose the suitable machine and sockets.
Prepare the cutter,fusion material.
2. Cutting the pipe
Cutting the necessary pipe length with the plastic pipe cutter.
3. Clearing the pipe
Clearing the fusion surface of pipe with alcohol.
4. Measure fusion depth
Measure the fusion depth according the fusion standard table and mark.
5. Heating
Put the pipe and fitting into the sockets horizontal, Heating time refer standard.
6. Connecting and cooling
Connect the heated pipe and fitting exactly and adjustment finish in 5s.
PRODUCT FEATURES
Feature:
Strong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABs + Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel spanner and screw.
Aluminum material with Daikin teflon,
Size support Dvs and ASTM standard,
Heating sockets, repair sockets and saddle
sockets are provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
Tailored For On-Site Technicians Requiring Efficient Pipe Welding
The socket fusion machine by MM‑Tech is purpose-built for professional technicians who need a practical solution for thermal joining of plastic pipes, especially PPR systems. Its lightweight body and user-friendly design make it highly suitable for mobile operations in tight or outdoor workspaces. In projects where compactness is essential—such as in-home plumbing or overhead HVAC pipe installations—this unit offers straightforward operation and high repeatability. It serves as an efficient complement to a traditional electrofusion welding machine, delivering solid bonding with minimal power consumption. Designed with the end-user in mind, it reduces training time and simplifies workflow across different pipe fitting scenarios.
Thermal Precision Through Robust Heating Control
This socket fusion machine utilizes dedicated heating heads tailored to specific pipe diameters, providing quick and stable heating during operation. The machine features temperature insulation and control elements that protect against overheating or inconsistent thermal output, both crucial in ensuring quality welds. While detailed specs like wattage or voltage are not listed on the page, the consistent application of heat confirms that MM‑Tech prioritizes operational accuracy. For roles commonly performed by an electrofusion welding machine, this socket fusion device bridges the gap where fast heating and light handling are required without sacrificing weld strength or reliability.
Cross-Industry Applications With Lasting Value
The MM‑Tech socket fusion machine finds versatile use in civil infrastructure, building plumbing systems, agricultural irrigation lines, and industrial processing pipelines. Its compact footprint enables fast deployment in complex environments—whether underfloor, within walls, or along long trench networks. When paired with or used in place of a butt fusion welding machine, it becomes especially valuable for smaller diameters and lower-pressure systems. Its reliability ensures leak-free connections, minimizes post-installation maintenance, and supports long-term system performance. Professionals across sectors benefit from its portability, durability, and practical fusion capability.
About Us
MM‑Tech is a leading manufacturer and supplier of butt fusion welding machines, socket fusion machines, and advanced electrofusion welding machine solutions. With years of industry expertise, we provide high-quality, innovative, and efficient welding equipment for various industrial, plumbing, and pipeline applications. Our mission is to deliver precision, durability, and reliability to customers worldwide.
Why Choose Us?
Industry Expertise & Experience：With over a decade of experience in plastic pipe welding technologies, MM‑Tech has built a strong global reputation for delivering reliable fusion welder equipment across multiple sectors.
High-Quality Standards：All our machines, including butt fusion welding machines and electrofusion machines, undergo strict quality control and multi-stage testing to ensure long-term durability, operational efficiency, and full compliance with international standards.
Innovative & Advanced Technology：We continuously invest in cutting-edge R&D to improve our full line of welding machines—from socket fusion machine systems to fully automatic units—ensuring energy efficiency, precise performance, and ease of operation.
Competitive Pricing & Customization：MM‑Tech offers direct-from-factory pricing, giving clients access to cost-effective solutions without compromising quality. We also provide tailored fusion welder configurations to meet unique project requirements.MM-Tech offers factory-direct prices, allowing you to get cost-effective solutions without compromising on quality. We also provide customized welding machines tailored to your specific business needs.
Comprehensive After-Sales Support：Our professional customer support team offers technical consultation, equipment troubleshooting, and maintenance services to ensure smooth operation of your electrofusion welding machine or any other system in the field.
FAQ
1.Who are we? MM‑Tech is a professional manufacturer specializing in plastic pipe welding machines, including butt fusion machines, electrofusion welding machines, and socket fusion machines. We serve industrial, commercial, and infrastructure sectors globally with innovative fusion solutions.
2. How Can We Guarantee Quality?
Strict Quality Control: Each unit, whether a manual socket fusion machine or a hydraulic butt fusion welding machine, is fully inspected before shipping. ISO & CE Certification: Our machines comply with international industry standards. Advanced Manufacturing: We utilize state-of-the-art technology to ensure precision and durability. Warranty & After-Sales Support: Comprehensive technical support and warranty coverage for all products.
4. Why Should You Buy From Us Instead of Other Suppliers?
Direct Manufacturer with Competitive Prices Superior Quality & Certified Products Innovative Technology & Customized Solutions Reliable After-Sales Support & Training Global Shipping & Fast Delivery
5. What Services Can We Provide?
OEM & Customization Services Technical Support & Training Fast Shipping & Worldwide Delivery Product Warranty & After-Sales Assistance Bulk Order Discounts & Factory Pricing
Need expert advice on welding machines? Contact us now for a personalized consultation and the latest pricing!
