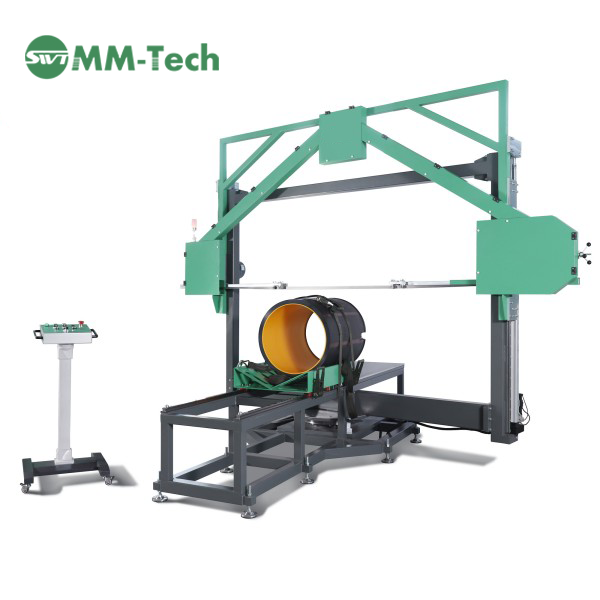

SWT-C630 Pipe Band Saw (200MM - 800MM)
SWT-C630 is a hydraulic workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 200mm to 630mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from 0°to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the chance to the operator work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
SWT-C630 Pipe Band Saw (200MM - 630MM) Product Details
|
| CUTTING RANGE |
OD 200MM-630MM |
MAX. CUTTING ANGLE |
67.5º |
| POWER SUPPLY |
380VAC,3 PHASE,50/60HZ |
MATERIALS |
HDPE - PP - PPR - PVDF - PVC |
| RATED POWER |
3.7 KW |
CUTTING ANGLE ERROR |
≤1° |
| LINE SPEED |
0-255M/MIN |
FEED SPEED |
ADJUSTABLE |
| SPACE OCCUPATION |
560CM*560CM |
NET WEIGHT |
1600KGS |
PRODUCT FEATURES
Standard Composition
Featured by
- Pipe Support Stand
- Auxiliary bench for cutting tees
- Pressure Bar
OPTIONS
- Automatic Angle Positioning
PACKAGING
CONTACT OUR EXPERTS TODAY FOR MORE INFORMATION
