SWT-V1200/630H Hydraulic Butt Fusion Welding Machine (24" IPS -48'' IPS)
The SWT‑V1200/630H butt fusion welding machine from MM‑Tech is engineered to meet the rigorous demands of field applications, offering consistent and high‑precision performance across various industries. As a versatile fusion welder, it ensures strong, uniform joints across large‑diameter thermoplastic pipe systems. Key application areas include:
● Water Infrastructure: Ideal for joining PE and PP thermoplastic pipes in municipal and rural water supply networks, this butt fusion machine guarantees secure, leak‑free connections that meet long‑term performance standards.
● Gas Distribution Systems: A dependable choice for welding pipes in gas supply networks, the machine delivers high‑integrity fusion joints. Its controlled heating system and pressure regulation are well-suited for critical electrofusion welding machine tasks in pressurized gas pipelines.
● Industrial Pipelines: Designed for a broad range of industrial thermoplastic pipeline applications, it supports durable and stable welds with minimal thermal deviation—ensuring longevity and reliability in process lines and chemical transport systems.
● Mining Industry: In mining operations, where pipeline integrity is crucial for water, slurry, or chemical transfer, the SWT‑V1200/630H stands out. Its robust hydraulic system and temperature stability make it a preferred butt welding machine for field engineers needing efficient, consistent, and rugged fusion performance under demanding site conditions.
SWT-V1200/630H Hydraulic Butt Fusion Machine (24" IPS -48'' IPS) Product Details
|
| WELDING RANGE O.D. |
630MM - 1200MM |
WELDING RANGE INCH |
24''-48'' IPS |
| POWER SUPPLY |
380V±10%, 50/60HZ |
TEMPERATURE RANGE |
MAX. 280°C |
| HEATER POWER |
21.5 KW |
PACKING DIMENSION |
2900*1980*2100 MM |
| TRIMMER POWER |
4.0KW |
1800*1200*2000 MM |
| PUMP POWER |
2.2KW |
870*420*560 MM |
| WORKING PRESSURE RANGE |
0-160 BAR |
GROSS WEIGHT |
3295 KGS |
PRODUCT FEATURES

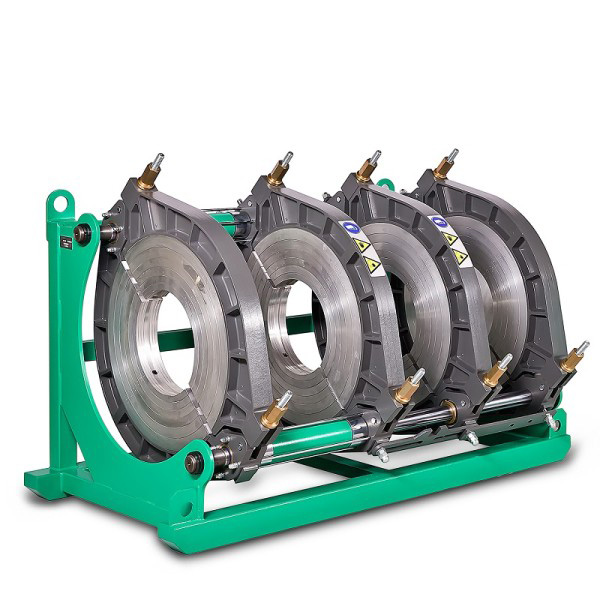

Machine Chassis
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.

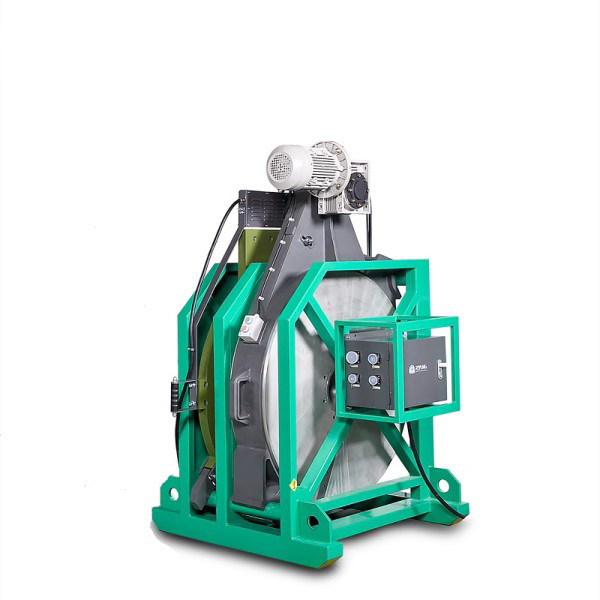

Heating Plate & Trimmer
● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
●The heating plate's sides maintain a temperature difference under 7°C.
● The stainless steel junction box resists corrosion.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station
● Powerful hydraulics with up to 160 bar pressure.
● Employ Cartridge valves allow for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
OPTIONS
Data Logger PEWELDBANK
Aluminum Stub End Holder
Roller Support
Crane
CONTACT OUR EXPERTS TODAY FOR MORE INFORMATION
Hot Tags: plastic pipe welding,
hdpe pipe fusion machine,
plastic tube welding machine,
polyfusion machine,
Hydraulic Butt Fusion Machine
Heavy‑Duty Fusion for Large‑Scale Technicians
The SWT‑V1200/630H is engineered for pipeline professionals—engineers, contractors, and maintenance teams—requiring reliable performance on large-diameter thermoplastic projects. Built as a butt fusion machine, it supports 630–1200 mm pipe welding for PE, PP, and PVDF materials. Its compact, deformation-resistant frame withstands heavy-duty operations and resists leakage, fostering trust in sectors like water distribution, gas networks, and mining pipelines. Technicians value its integration of hydraulic pressure control and heating precision to maintain consistent fusion quality under varied field conditions.
Precise Hydraulics, Temperature Stability, and Control Interface
As a fusion welder rooted in hydraulic technology, the SWT‑V1200/630H operates with 0–160 bar working pressure and features a cartridge-valve system for easy maintenance. The PTFE‑coated heating plate resists adhesion and maintains surface temperature variation within ±7 °C. Its temperature control enables accurate heating—up to approximately 280 °C—while the trimmer tool ensures clean pipe ends. The machine operates on a 380 V ±10%, 50/60 Hz power supply, and integrates ergonomic handles and a quick-detachable frame for efficient setup, maintenance, and transport.
Operational Value for Industrial Fusion Tasks
In demanding environments—municipal infrastructure, industrial pipeline installations, and energy networks—this butt fusion welding machine ensures leak-free, consistent joints critical to system integrity. Its robust hydraulic drive and stable heating address long-run welding applications in variable climates (−10 °C to +45 °C). Users benefit from the dual-timer system offering soak-and-cooling monitoring, clear pressure readouts, and optional accessories like data loggers, cranes, and trolley support. Together, these features enhance productivity, minimize downtime, and uphold stringent standards across fusion-dependent industries.
About Us
MM‑Tech is a professional designer and manufacturer of thermoplastic pipe welding equipment, rooted in reliable engineering and global standards. With a focus on butt fusion machines, electrofusion welders, and socket fusion systems, MM‑Tech serves clients across municipal infrastructure, industrial pipelines, and construction markets. The company’s product lineup, including models like SWT‑V1200/630H, combines precision temperature control, robust hydraulic systems, and user-informed design. With CE and ISO 9001 certifications, MM‑Tech emphasizes quality and operational dependability, supporting customers worldwide—including distributors, contractors, and engineering teams—with technical service and responsiveness. Cooperative innovation and functionality remain at the core of MM‑Tech’s commitment to extend value through resilient fusion solutions.
Request a tailored quote for the SWT‑V1200/630H fusion system now!
FAQ
What pipe diameter range does the SWT‑V1200/630H support?
It handles pipe welding from 630 mm up to 1200 mm outer diameter.
Which materials can be welded using this machine?
It supports PE, PP, and PVDF thermoplastic pipes and fittings.
What warranty is offered, and are spare parts included?
It includes a 24‑month international warranty, and failed parts during normal use are replaced free of charge.
How is temperature and pressure control managed?
The machine features PTFE-coated heating plate, ±7 °C surface temperature deviation, cartridge valve hydraulics with clear pressure gauge, and digital timer phases for soaking and cooling.
Can accessories like data logging or cranes be added?
Yes—optional data logger, support roller, trolley, crane, and various reducing inserts are available for enhanced job-site adaptability.
