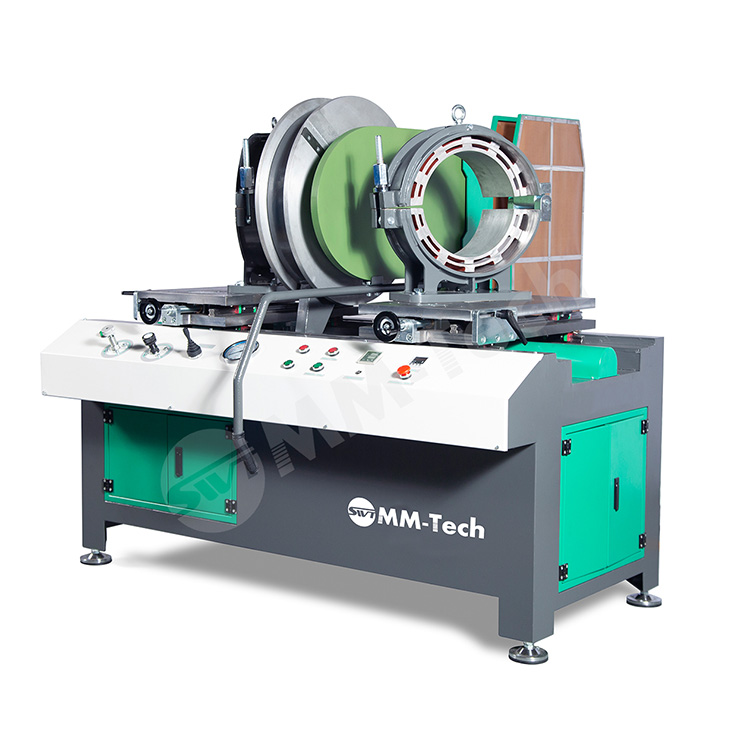

SWT-MA400 Workshop Fittings Welding Machine (90MM - 400MM) Product Details |
|||
| ELBOWS | OD 90MM-400MM(0-90°) | TEES & CROSSES | OD 90MM-400MM |
| WYES ( *OPTION ) | OD 90MM-315MM(45°-60°) | MATERIALS | HDPE-PP-PPR-PVDF-PVC |
| POWER SUPPLY | 12.3KW | PISTON AREA | 10.9CM2 |
| POWER SUPPLY | 380VAC,3 PHASE,50/60HZ | TOTAL PACKED IN | 4 PLYWOOD CASES |
| TOTAL WEIGHT (G.W.) | 1744KG | MACHINE DIMENSION | 1350*1350*1370MM |
Standard Composition
Featured by
- Basic machine completes with two carriages, both driven by the hydraulic system.
- Manual hydraulic control panel with all functional keys and buttons plane layout.
- Electrical trimmer with gear and safety microswitch.
- PTFE coated heating plate with a steel shield.
- Left and right elbow clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
- Left and right 90°Tees and Crosses clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
The SWT-MA400 Workshop Fittings Welding Machine by MM-Tech is engineered for precision welding of HDPE, PP, and PVDF fittings ranging from 90 to 400 mm. As a trusted china hdpe welding machine supplier, MM-Tech ensures this machine meets the rigorous demands of wholesale production. Built with hydraulic control and durable components, it delivers strong performance in fabricating elbows, tees, crosses, and Y-type fittings for workshop environments.
1. Precision Hydraulic Welding System: The SWT-MA400 applies a dual hydraulic drive and high-accuracy heating control to deliver secure, defect-free welds. This ensures consistent quality in every fitting produced.
2. Wide-Ranging Fitting Fabrication: Capable of welding elbows, crosses, Y-shaped junctions, and equal tees across 90–400 mm pipe diameters, it offers unmatched versatility for workshop applications.
3. Built for Industrial Durability:With its steel frame, PTFE-coated heating plate, and safety-protected cutter, the machine is designed for demanding long-term use in busy production settings.
4. Smart and Efficient Operation: User-friendly features like digital timers, pressure gauges, and quick clamp adjustment allow for faster setup, smoother operation, and minimal downtime during production.
5. Perfect for Bulk and Custom Orders: Designed for heavy-duty output, the SWT-MA400 is a top choice for wholesalers and contractors seeking a robust and scalable Fittings Welding Machine from a reliable china hdpe welding machine supplier.
