Maquina De Termofusion

SWT-V200/63H HDPE Welding Machine

Item No.: SWT-V200/63H
SWT-V200H is hydraulic butt fusion welder.
Welding range:63-200mm (2''-8'')
It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps` drag bar.
It is suitable f
Description

SWT-V200 (2"-8") Hydraulic Butt Fusion Machine

DESCRIPTION
SWT-V200H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps` drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

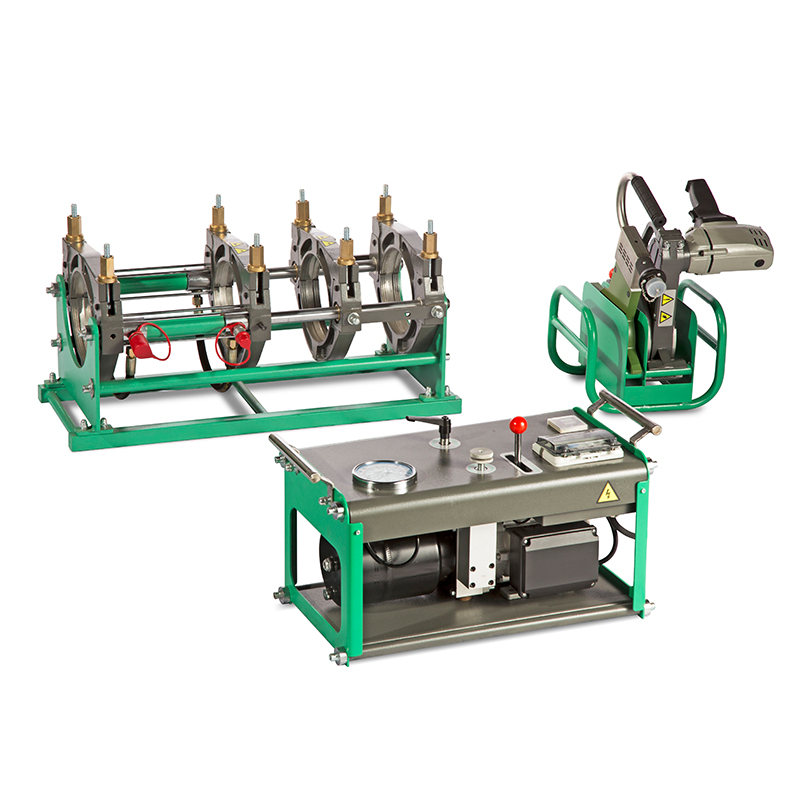

SWT-V200H includes:

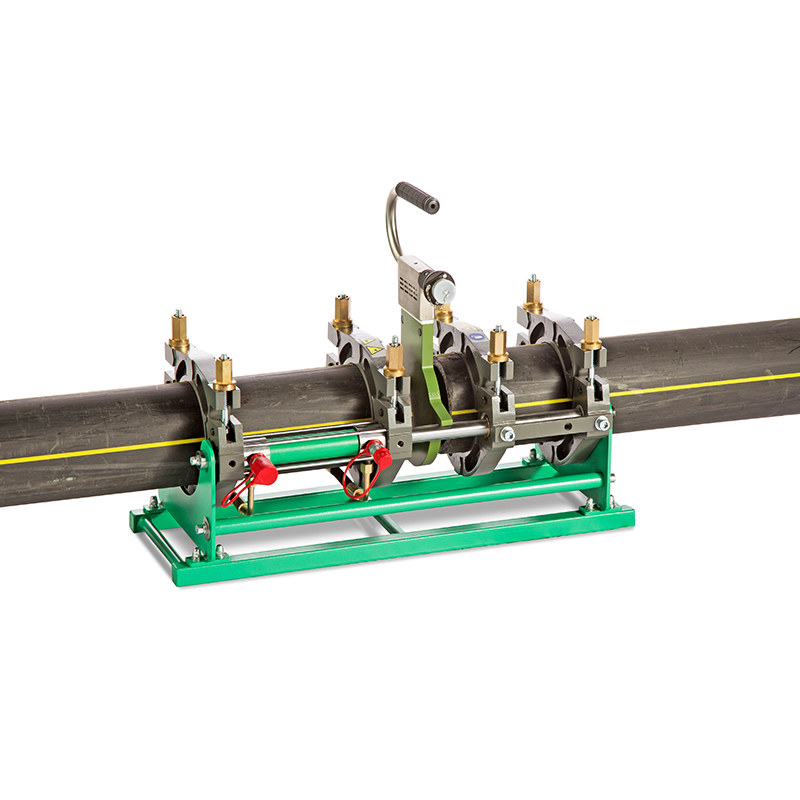

*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;

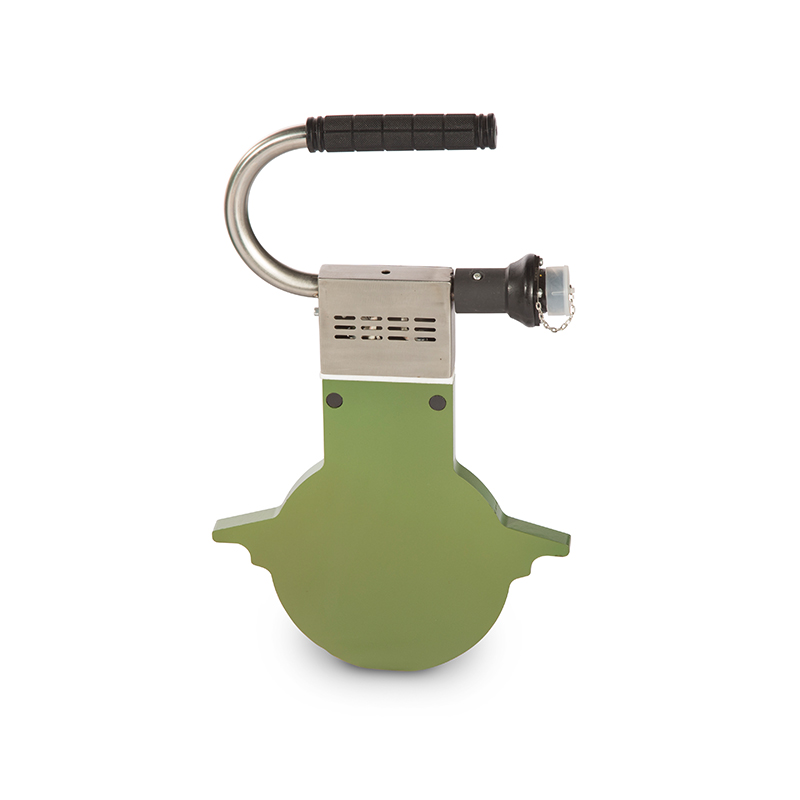

*A Teflon coated heating plate with separate temperature control system;

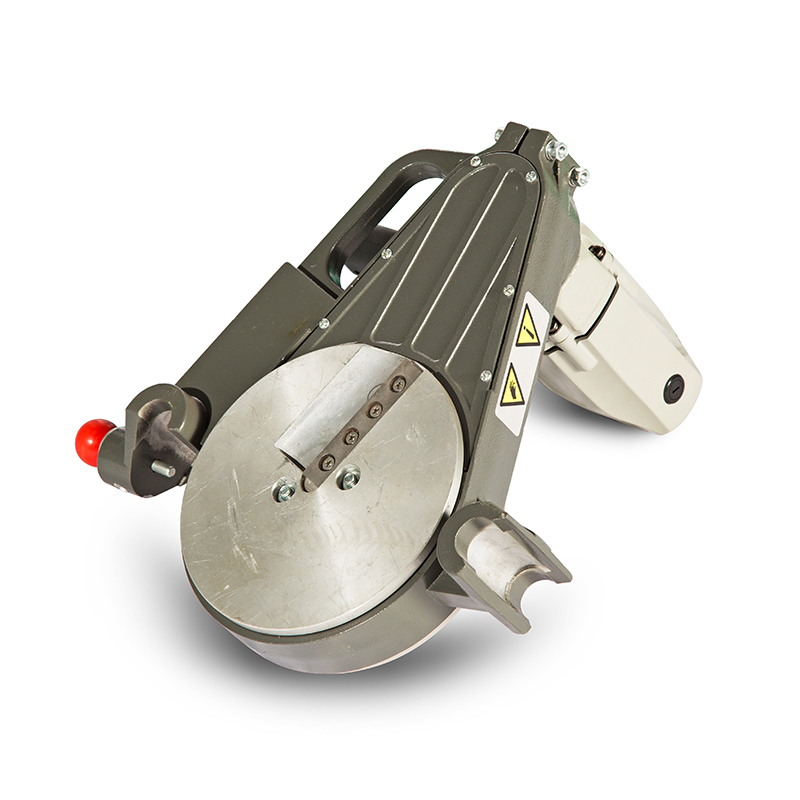

*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.

Available options:

Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).

FEATURES

Welding Range 63mm-200mm
Materials PE,PP,PVDF
Reducing inserts 63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm
Ambient temp. -5~45℃
Power supply ~220V±10 %
Frequency 50/60Hz
 Total current  21.29 A
Total power 2.95 kW
Heating plate 1.5 kW
Planing tool motor 0.7 kW

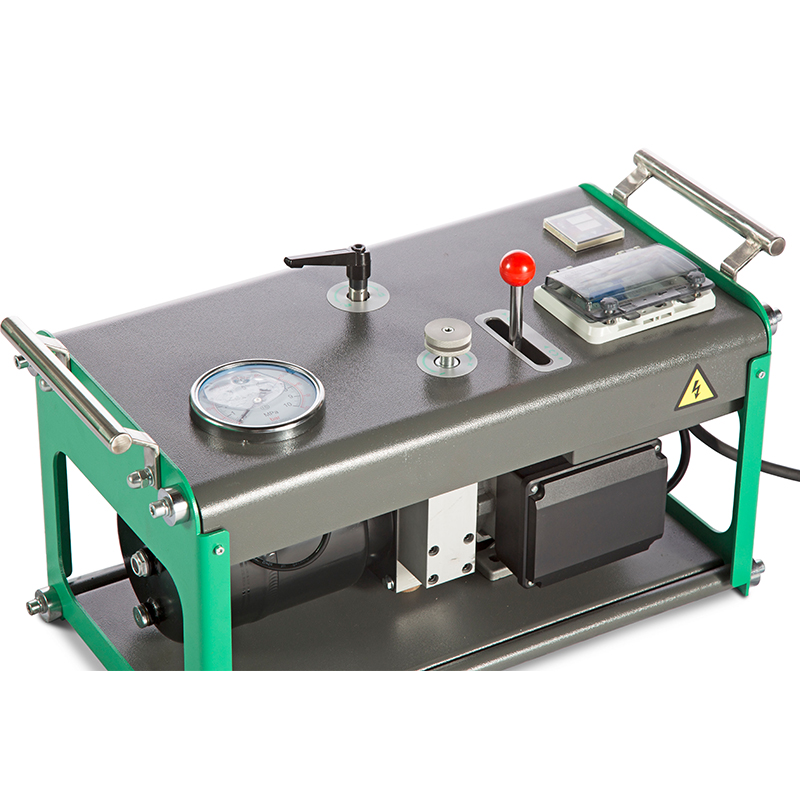

Hydraulic unit motor 0.75 kW
Volume of oil box 3L
Difference in surface temperature of heating plate ±5℃
